Electronics for operating turnouts and signals

MD216b and MD216c

These are two other versions of the MD216, The version on the left moves the common connection and adds a connection for an input module.

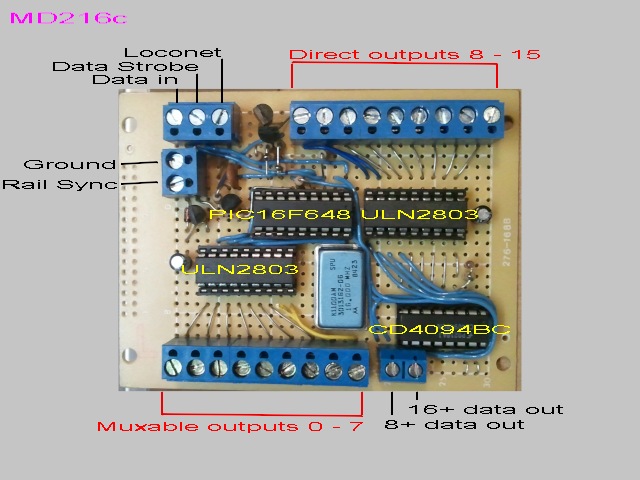

The version on the right adds connections for an input module and the initial (8+) data out.
Having the initial data out allows paralleling output modules, helpful for driving multiple devices that act the same, eg crossover turnouts.
